Spatial models related to trees

Jens Lundgif

February 23, 1999


This is a note explaining the status of my PhD project and the plans for the thesis. One article is submitted, two is well underway, and one or two more are planned. The requirement for PhD courses is fulfilled and there has been two longer visits at foreign departments.

1 Introduction


1.1 This paper


This paper is the written note required in connection with the midterm seminars for PhD students at KVL. This paper is organized as follows: this introduction explains the background for the project and the overall plan for the thesis. Sections 2 and 3 explains the work already done or well underway, whereas Section 4 discusses the plan for the future work. Appendices A, B, and C list my planned publications, longer visits, and PhD courses, respectively.

1.2 The project


The overall idea in the project is to identify tree tops in aerial photos of Norway spruce. The project can be seen as a continuation of [Dra97] (especially [DR96] and [DR97]), and is very closely connected to [Lar97] and [LR98a].

In forestry there is a wish to get information about the number and volume of trees in the forest. This will help management and planning of the forest, as well as the positions of the trees. So far, the expenses in terms of working hours and money to obtain this information has prevented a detailed inventory. Analysis of aerial photos seem to promise a less expensive way to get detailed information on the individual tree. Further background information can be found in [Dra97].

1.3 Plan for the thesis


The plan is to make the thesis from the papers listed in Appendix A together with one or more introductory sections and a discussion. One of the five publications listed in Appendix A is submitted and two is well underway. Work on the publications 4 and 5 has not started yet, and they are further discussed in Section 4.

2 Estimation of tree top positions


This section describes the work in connection with estimation of tree top positions in aerial photos.

2.1 Aerial photos of Norway spruce


The upper part of Figure 1 shows an aerial photo from a flight 560m above a thinning experiment in Norway spruce. The goal is to identify the positions of tree tops in the image.

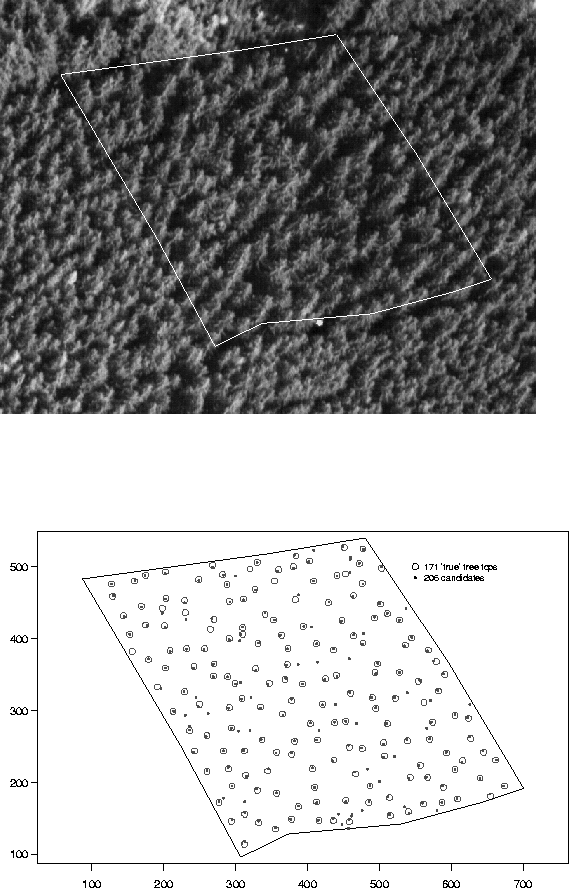

Figure: Image with sidelighted trees, and, in the lower part, 171 X-points (centres of circles) corresponding to `true' tree tops and 206 Y-points (dots) corresponding to template matching. The area of the delineated subplot is 4454 m tex2html_wrap_inline607 , and the unit of the axes in the lower part is linear pixel size, 0.15 m.

Morten Larsen has in [Lar97] and [LR98a] developed a template model for one tree taking into account the positions of the camera and light sources. The resulting template, shown in the right part of Figure 2 bounded by an ellipse, was moved pixelwise over the image. Local maxima of the correlation between template and image pixel grey levels were considered as candidate positions of tree tops. The left part of Figure 2 sketches the model for light reflection within a tree.

Figure 2: Model tree and, in the right part, template with optimal bounding ellipse.

The lower part of Figure 1 shows a map of the image in the upper part. Both the true positions of tree tops (denoted by circles) and the estimated positions as found by the template matching method (denoted by dots) are shown. Let tex2html_wrap_inline625 , tex2html_wrap_inline627 , denote the positions of the true points and let tex2html_wrap_inline629 , tex2html_wrap_inline631 denote the positions found by the template matching method. We want to estimate the true positions X but do instead observe Y. The template method in [LR98a] gives 570 candidate positions for tree tops, but only the 206 best candidates are used here. See [LR98b] for full details.

2.2 Disturbances of a point process


As noted above, the X and Y point sets are not identical. The idea in the inclusion of more Y points than the present number of X points in the data is two fold:

We can consider Y as a disturbed observation of X, and will now propose a model for the observation of Y. Consider X and Y as point processes on a bounded subset A of tex2html_wrap_inline663 .

Suppose that Y is generated from the X-process by the following disturbance mechanisms:

Thinning. Each point tex2html_wrap_inline669 , is thinned with probability tex2html_wrap_inline671 and retained with probability tex2html_wrap_inline673 . If an X-point is thinned, then there will not be any corresponding Y-point. Thinnings are assumed to be independent for different points.
Displacement. For each remaining point tex2html_wrap_inline679 a corresponding Y-point is generated by displacement to a position with probability density tex2html_wrap_inline683 with respect to the Lebesgue measure on tex2html_wrap_inline663 . Given X, the displacements of different points are independent, mutually and of the thinnings.
Censoring. The displaced points are observed if they are within an observation area A; otherwise they are censored and not observed. Thus censoring of an unthinned point generated by tex2html_wrap_inline679 occurs with probability tex2html_wrap_inline693 . (Here tex2html_wrap_inline695 denotes the complement tex2html_wrap_inline697 of the set A.)
Superposition of ghost points. In addition to the points generated as described above we have superposition of extra 'ghost' points. These points are assumed to arise from a Poisson process on A with intensity tex2html_wrap_inline703 , where X, as above, denotes the entire X-process including thinned points. Given X, the ghost points are assumed to be independent of thinning, displacement and censoring.

The points generated from X by the combination of thinning, displacement, censoring and superposition form the Y-process, which is thus restricted to the set A.

So far I have used a homogeneous thinning probability, p(x)=p, a normal distribution as the displacement distribution, and homogeneous poisson noise tex2html_wrap_inline719 .

We let tex2html_wrap_inline721 denote the set of one-to-one mappings tex2html_wrap_inline723 for two finite sets M and M' with the same number of elements. The likelihood function for the observation of Y given X is given by Theorem 1.


2.3 Estimation of parameters


Estimation of the parameters in the model (1) is difficult due to the very large sum. The sum is over all possible ways to pair X and Y points. We will call such a pairing tex2html_wrap_inline757 a state. The state tells which Y points that comes from the Poisson noise, and which Y points that are paired to which X points. We will consider estimation of the parameters in the model in case both X and Y is observed.

The problem can be considered as a missing data problem with the information on the state s as the missing data. I have suggested a method based on the concept of ``neighbours'' to a state s that does approximate likelihood analysis. The crucial issue in the approximate likelihood computation is to find states tex2html_wrap_inline757 such that the corresponding terms give large contributions to (1), and then focus on only a small number of terms. This is achieved by use of a deterministic, iterative algorithm which consists of a starting procedure for finding an initial set of states and local maximizations over suitably chosen neighbourhoods of states until no further improvement is obtained. A neighbour of a state s is a state s' which is only slightly different from s.

The paper [LR98b] covers the problems presented in Section 2.2 and 2.3. This paper is finished and submitted.

2.4 Reconstruction of a disturbed point pattern


The paper [LPR99] covers the problems described in this section. It is work in progress and it is estimated to be finished in April.

The idea is to use the model (1) to reconstruct X when the parameters p, tex2html_wrap_inline785 , ..., are known. The knowledge of the parameters can e.g. be obtained through training data sets observed under similar conditions as the current data.

Problems similar to this one can be found in [BvL93], [CL98], [DR95]. The first is about a point process description of an image, and the latter two is about detection of mines in minefields.

We will use a Bayesian approach and have a prior distribution on X. The prior distribution should be a regular point pattern, which expresses that trees in planted and managed forests (as our images) tend to be placed regularly in the area.

Next, our problem is to say something about the posterier distributiongif tex2html_wrap_inline795 . We will explore this posterior distribution by MCMC samples from the distribution. We make a sampler of Metropolis-Hasting type along the lines in [Gre95] and [GM94]. Some inital experiments with this sampler is shown in Figures 3, 4, and 5.

Figure 3: The number of simulated X point and the number of matched X points in a simulation of length 10000 starting from the empty point configuration.

Figure: Same as Figure 3, but without the first 1000 observations.

Figure 5: Simulation number 9999. Both the true X points (circles), the observed Y points (dots) and the simulated X points (x's) are marked.

The above simulations are made with a Poisson process as the prior distribution. The plan for the paper is to use a prior with regular point patterns, but some minor problems must be solved. Also some work on how to best present the results remain.

3 Survival of the fattest?


The work described in this section is documented in [Lun98] and is not connected to the work described in Section 2. A model for survival times of Sitka spruce based on a discretised version of a Cox model is suggested. The positions af all the trees are known, and a competition index is used as a covariate to take the spatial competition between trees into account. The plan is to write a joint paper together with Jens Peter Skovsgaard based on the course report.

4 Plan for future work


In this section some ideas for the future work is outlined.

3D reconstruction


In continuation of the work in Section 2 it is quite natural to improve the estimation of the positions by use of several images at the same time. The idea is to estimate the tree top positions in 3-dimensional real world coordinates. Each image only contains information on 2 dimensions and it might not be the same trees that are found in every image. My impression is that a pretty good reconstruction can be made by, say, 3-4 images. A lot of the ground work for this is already done, but of course there is still a lot of outstanding issues.

4.2 Some more theoretical work?


The thesis could need a more theoretical paper than the ones mentioned above. One idea might be to look into the area of perfect simulation. During my stay in Jyväskylä I participated in a study group about some articles on perfect simulation, and the summer school on coupling methods in Göteborg this summer mentioned in Appendix C is also relevant for this subject.

4.3 Plan for conferences


This summer I have the following plans for conferences, etc.:

Under consideration is the following events:

A Publications


This section describes the planned articles for the thesis.

  1. Self-thinning among trees. This article will be joint work with Jens Peter Skovsgaard and will be based on the course report [Lun98]. The course report is finished, and work on the article will start in spring 1999.
  2. [LR98b] is a submitted article about the problems described in Section 2.3.
  3. [LPR99] is work in progress about the problems described in Section 2.4.
  4.   An article about 3D reconstruction of the tree top positions is planned. See Section 4.1.
  5.   A more theoretical work on perhaps perfect simulation of point processes. This is more speculative. See Section 4.2.

B Longer visits


Two longer visits have taken place:

A visit at Chalmers during the visitors programme in April-May 1999 is considered.

PhD courses


Forest Biometrics
5 points, held by Jens Peter Skovsgaard, FSL, 1997. The report [Lun98] was part of the course evaluation.
Percolation with applications
3 points, held by Olle Häggström, Chalmers University of Technology, spring 1997.
Weak convergence
2 points, held by Bo Martin Bibby as part of a study group about the book [vdVW96], fall 1997.
European Summer School, Markov Chain Monte Carlo Methods
1 point, held by Jesper Møller, summer 1998.

The requirement for PhD courses is fulfilled by these courses.

I have considered participating in a summer school ``Coupling methods in probability'', Göteborg, June 14-19, 1999.


A. J. Baddeley and M. N. M. van Lieshout, Stochastic geometry models in high-level vision, Advances in Applied Statistics: Statistics and Images 1 (1993), 231-255, Supplement to Journal of Applied Statistics vol. 20 Nos. 5/6 1993, Statistics and images, eds. K. V. Mardia and G. K. Kanji.

N. Cressie and A. B. Lawson, Bayesian hierarchical analysis of minefield data, Proc. SPIE Vol. 3392, Detection and Remediation Technologies for Mines and Minelike Targets III, Abinash C. Dubey; James F. Harvey; J. Thomas Broach; Eds., 1998, pp. 930-940.

Abhijit Dasgupta and Adrian Raftery, Detecting features in spatial point processes with clutter via model-based clustering, Technical Report 295, Department of Statistics, University of Washington, October 1995, A revised version appeared in Journal of the American Statistical Association 93(1998):294-302.

Kim Dralle and Mats Rudemo, Stem number estimation by kernel smoothing of aerial photos, Canadian Journal of Forest Research 26 (1996), 1228-1236.

Kim Dralle and Mats Rudemo, Automatic estimation of individual tree positions from aerial photos, Canadian Journal of Forest Research 27 (1997), 1728-1736.

Kim Dralle, Locating trees by digital image processing of aerial photos, Ph. D. Thesis, Dina Research Report No. 58, The Royal Veterinary and Agricultural University, March 1997.

Charles J. Geyer and Jesper Møller, Simulation procedures and likelihood inference for spatial point processes, Scandinavian Journal of Statistics 21 (1994), no. 4, 359-373.

Peter J. Green, Reversible jump Markov chain Monte Carlo computation and Bayesian model determination, Biometrika 82 (1995), no. 4, 711-732.

Morten Larsen, Crown modelling to find tree top positions in aerial photographs, In the third international airborne remote sensing conference and exhibition, (Copenhagen, Denmark), vol. II, 7-10 July 1997, pp. 428-435.

Jens Lund, Antti Penttinen, and Mats Rudemo, Reconstruction of a point process from a disturbed observation, Report, Department of Mathematics and Physics, The Royal Veterinary and Agricultural University, 1999, In preparation.

Morten Larsen and Mats Rudemo, Optimizing templates for finding trees in aerial photographs, Pattern Recognition Letters 19 (1998), 1153-1162.

Jens Lund and Mats Rudemo, Models for point processes observed with noise, Report 10, Department of Mathematics and Physics, The Royal Veterinary and Agricultural University, November 4 1998, Submitted.

Jens Lund, Survival of the fattest? Self-thinning among trees, Report 3, The Royal Veterinary and Agricultural University, Department of Mathematics and Physics, 1998, Course report from PhD course in forest biometrics.

Aad W. van der Vaart and Jon A. Wellner, Weak convergence and empirical processes, Springer Series in Statistics, Springer-Verlag, 1996.
